MIPI interface 7 Inch TFT LCD Screen 800x1280 IPS Full Viewing Angle Optional CTP
Clear TFT LCD Screen:
High Resolution: 800 x 1280 pixels for detailed, sharp images and text.
IPS Technology: Superior color reproduction, wider color gamut, and excellent brightness uniformity across the entire screen.
Full Viewing Angles: Consistent image quality and color fidelity from virtually any direction. Perfect for applications where multiple viewers or varied mounting angles are involved.
Support MIPI interface:
Using MIPI standard, fast data transmission, low EMI and low power consumption. Ideal for compact and energy-efficient designs
Optional Capacitive Touch Screen (CTP):
Available in clear version: choose a display with or without touch functionality to perfectly match your project needs and budget.
Touch panels can be customized according to customer requirements.
This 7-inch TFT LCD Screen is equipped with a 800×1280 high-resolution IPS panel, which is ideal for industrial, medical, automotive and consumer electronics applications. If you have other needs, welcome to consult our customer service online.
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| item | ZH070BH110-01A |
| Screen Size | 7.0 Inch |
| Resolution | 800x1280 |
| Brightness | 300 cd/m²(Typ.) |
| Interface | MIPI, 40pins Connector |
| Display Mode | IPS,Normally Black |
| Driver IC | JD9366AB-3 |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Lifetime | 20,000Hrs (Typ.) |
| Active Aera | 94.2(W) x 150.72(H) mm |
| Outline Dimension | 103.52(W) x162.09(H) x 2.66(T)mm ( MAX.) |
| Backlight | 20-Chip White LED, 80mA,15V |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |

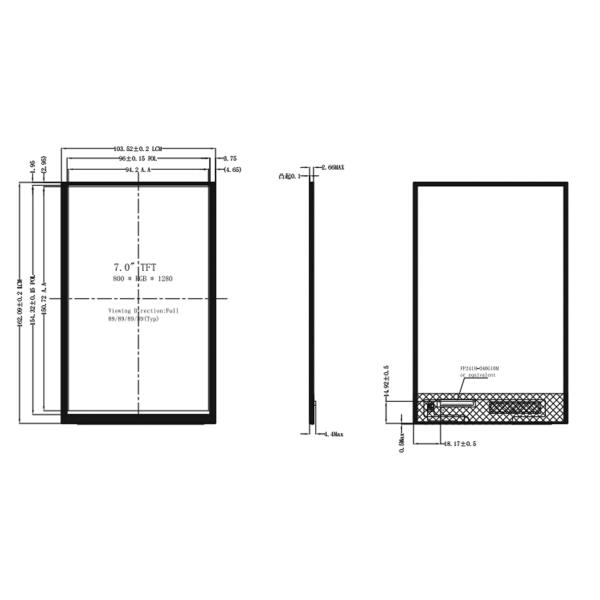

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
